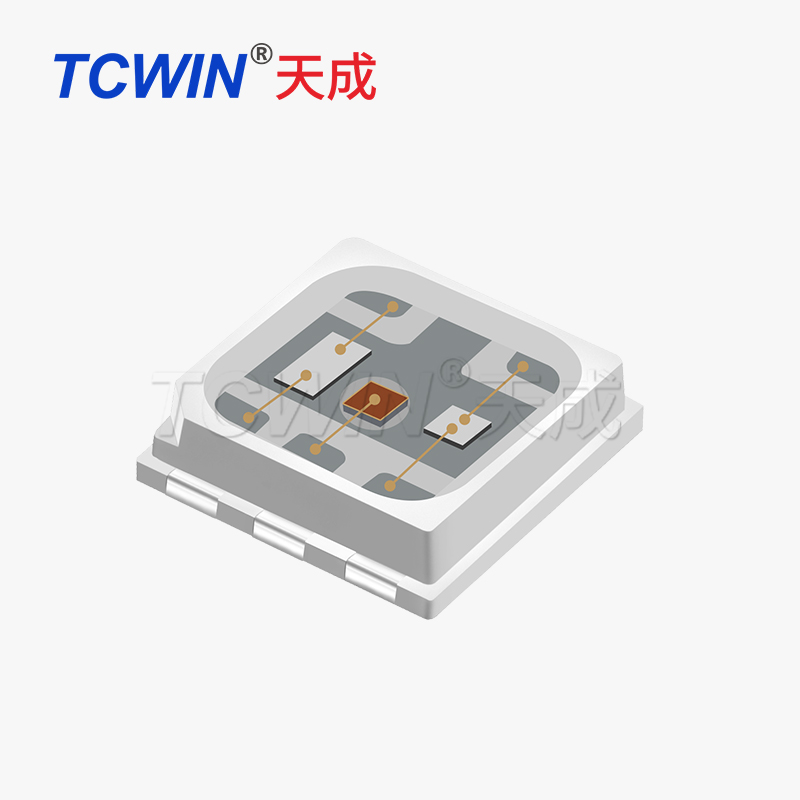

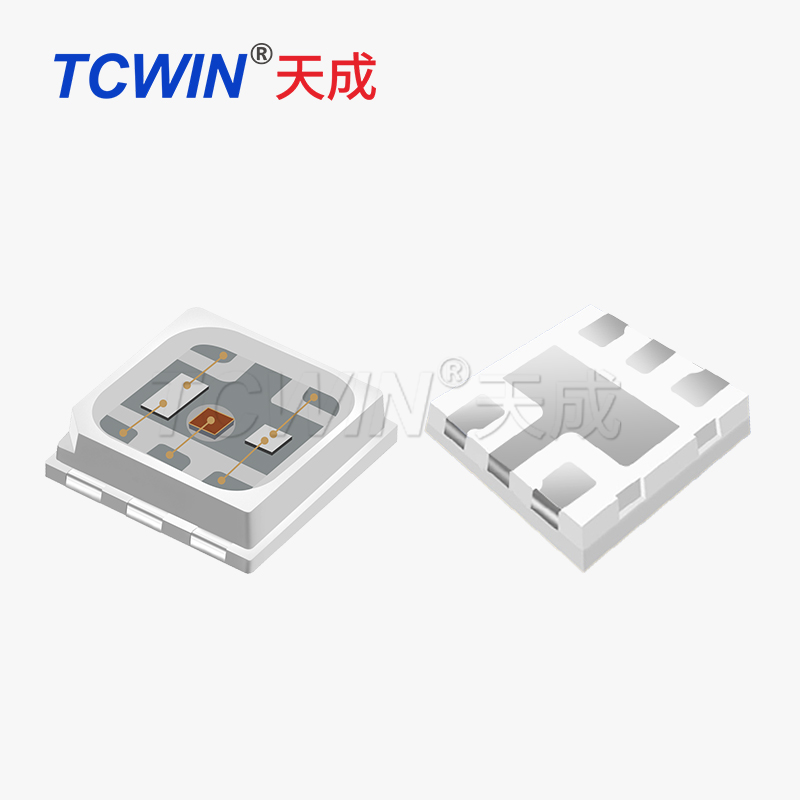

3535 Smd Led RGB

Lighting solutions service:Lighting and circuitry design, auto CAD layout, Onsite metering, Project Installation, LED Strip
Chip Material:InGaN
Emitting Color:RGB
Luminous Intensity:R: 15-20lm G:30-35lm B: 8-10lm
Luminous Flux(lm):RGB
Optical Attenuation(%):2
Power Dissipation:2
Viewing Angle(°):120
Color Rendering Index(Ra):80
Color Temperature:RGB
Operating Temperature(℃):-40 – 150
Storage Temperature(℃):5 – 30
Certification:CE, RoHS
Product name:3535 RGB 1.5w
package Size:3.5*3.5*0.9mm
Chip Brand:epistar Chip
Emitting Colors:RGB Red Green Blue
Voltage:R:2.0-2.2v G:3.0-3.2v B:3.0-3.2v
Application:stage light , flood light ,spot light , underwater light and etc

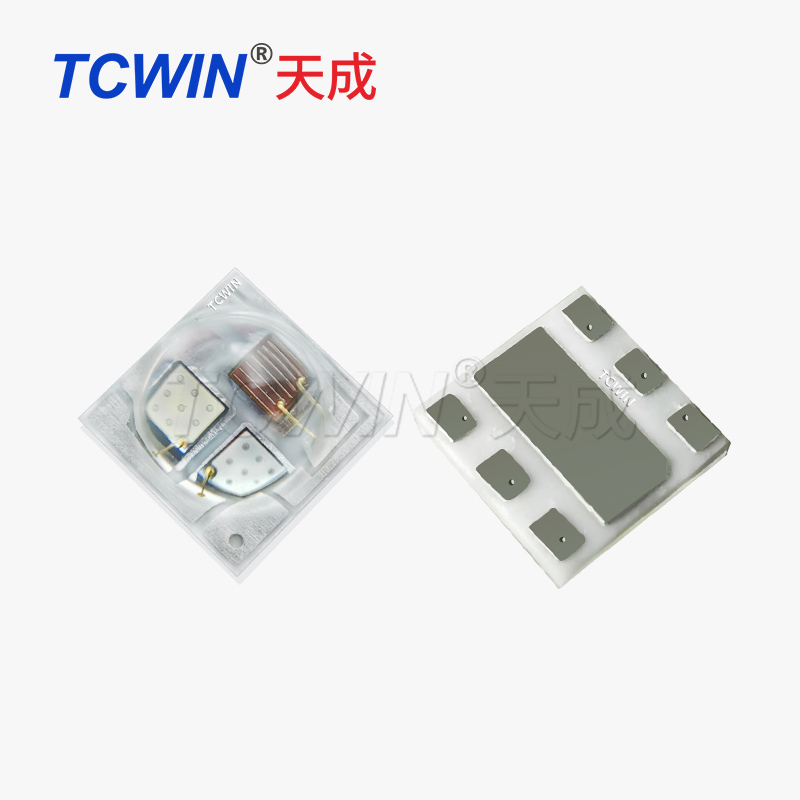

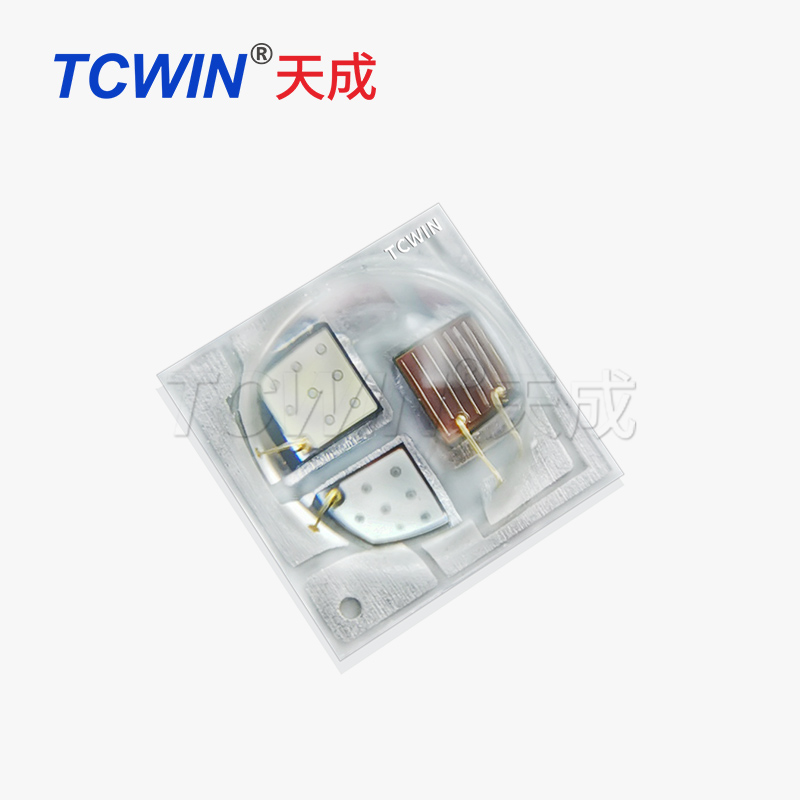

3535 smd led rgb with ceramic ball head
Product name
.5w 3535 RGB smd led with epistar chip TC3535RGBF50-3CJH
Product feature
Three RGB chip package, single chip 150ma work. Different Pin positions can be customized according to requirements.

Luminous intensity :
G: 30 ~35lm
R: 15 ~20 LM
B: 8 ~10 lm
stage light, flood light , spot light ,
underwater light and ect.
UN EN 62471, SGS, ROHS, Moisture – resistant grade: Level 4
