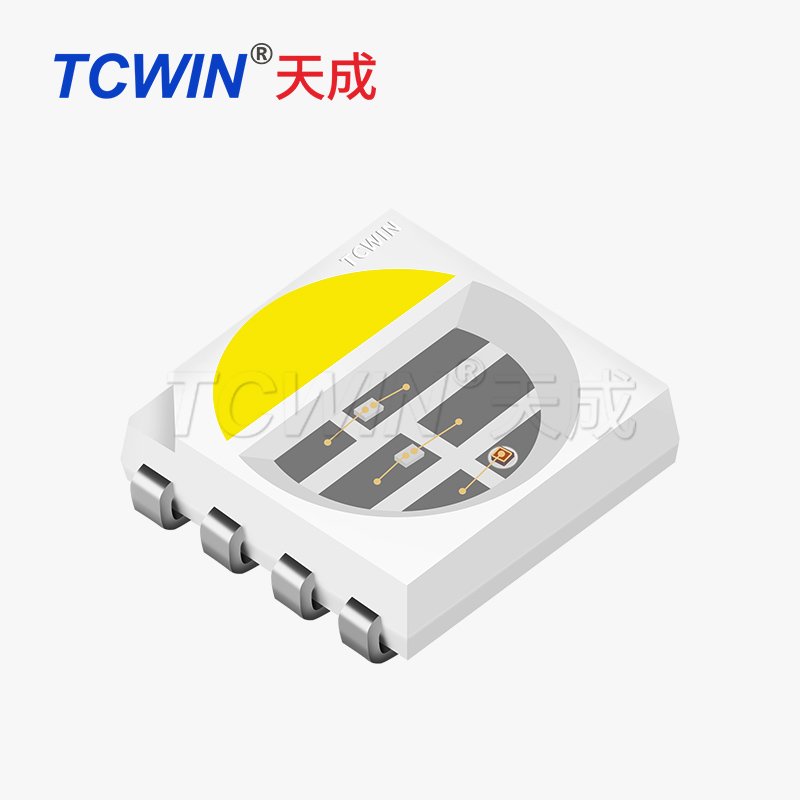

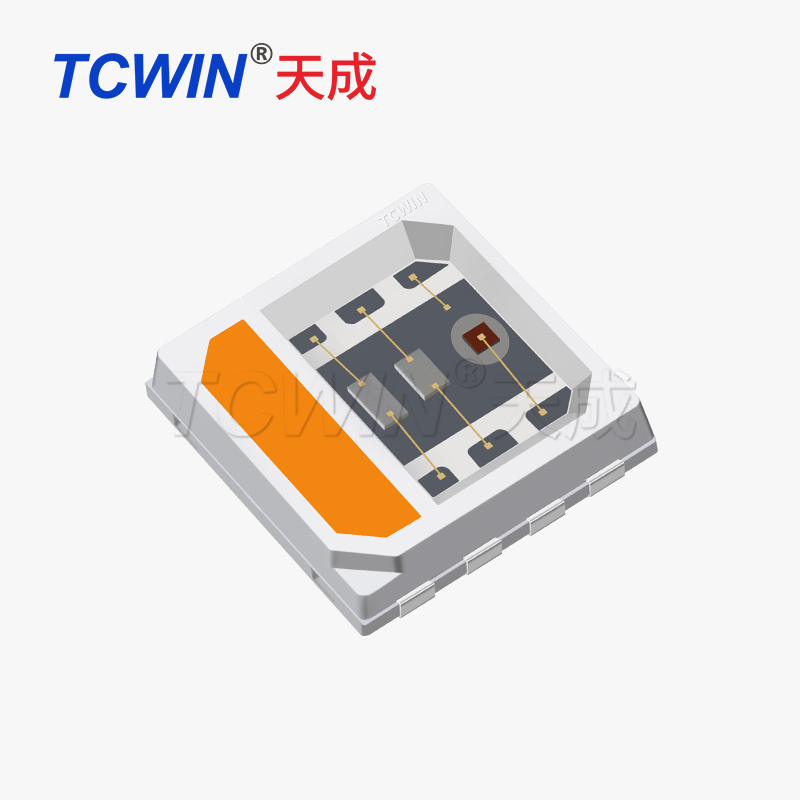

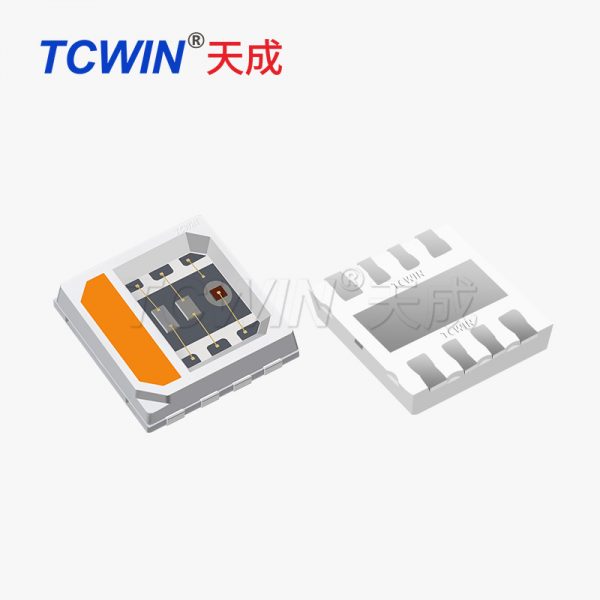

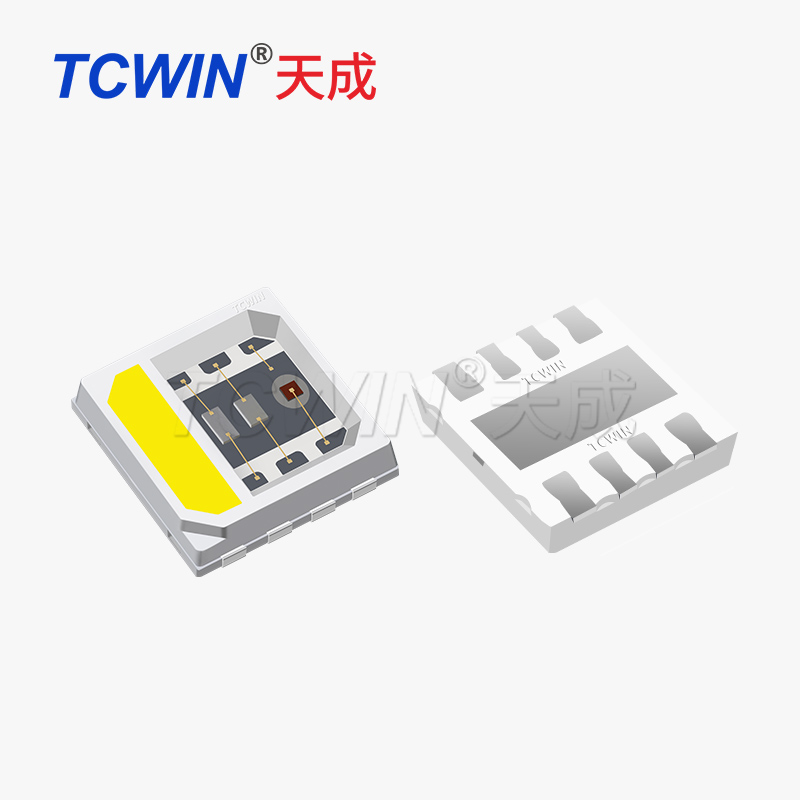

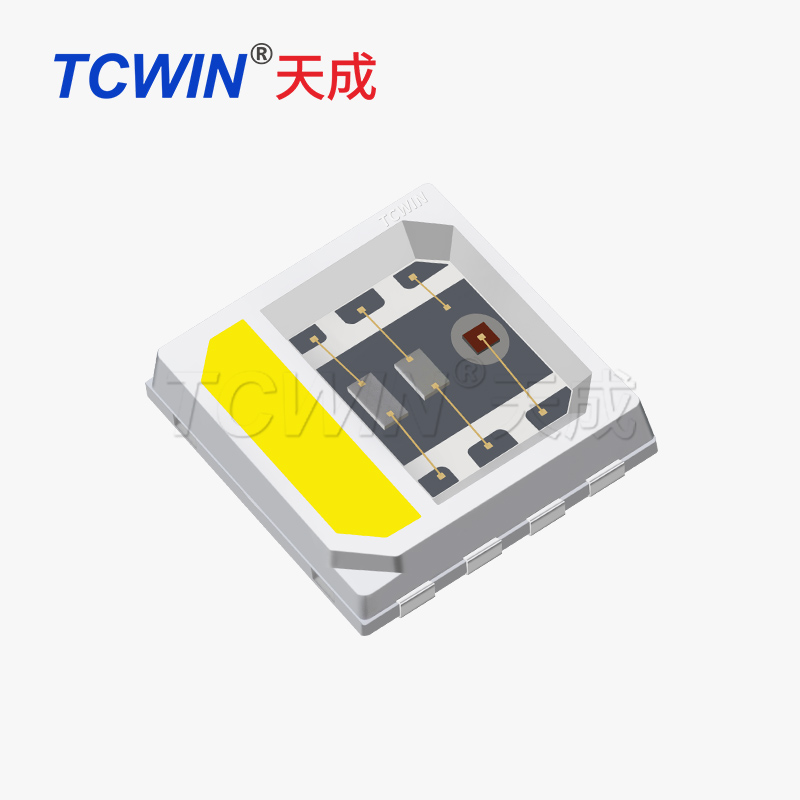

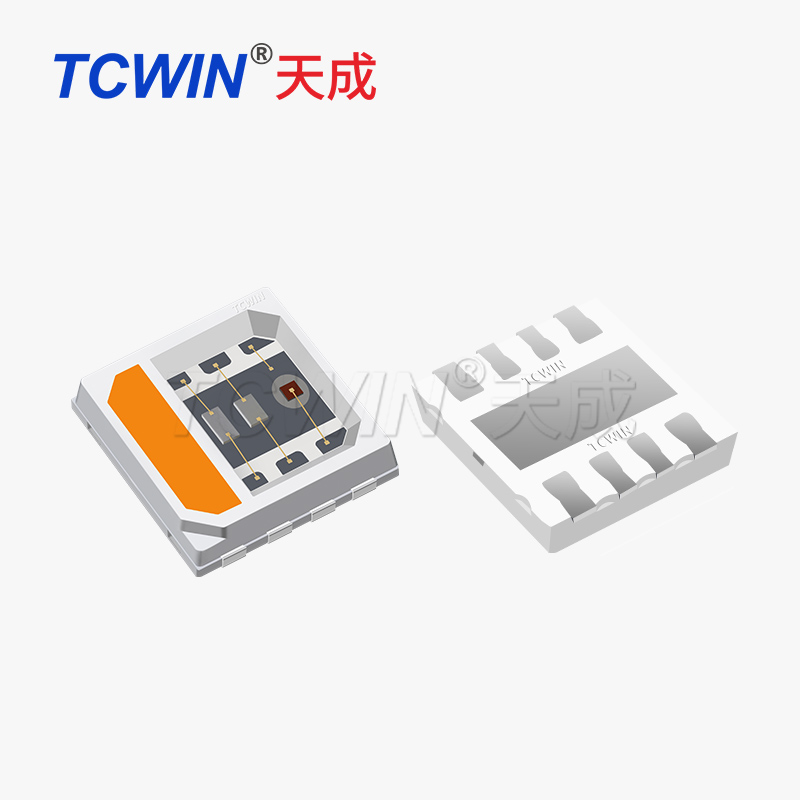

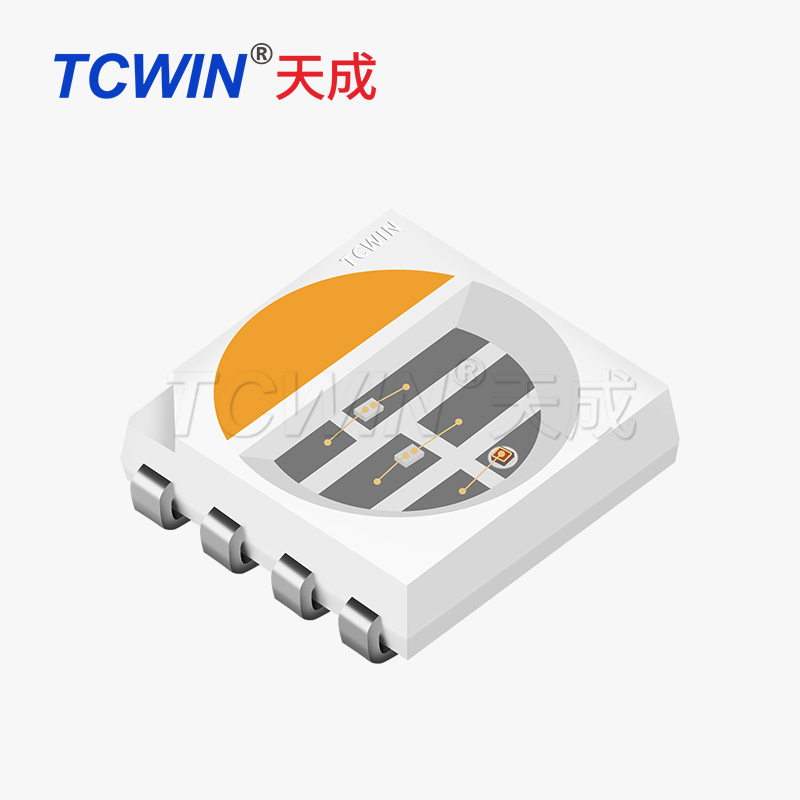

5050 RGBW Smd Led 0.8w

Product name
5050 4-chip 0.3w RGBW ,RGB+ Pure white
Product feature
Four white chip package, single chip 60ma work. Different Pin positions can be customized according to requirements.
Application
LED line light, LED fence tube, LED point light, LED module, LED strip, LED pixel screen ,stage light , flood light , underwater light , outdoor lighting project
Certifications
UN EN 62471, SGS, ROHS, Moisture – resistant grade MSL2a

Quick Details
Type: SMD LED
Warranty(Year): 3-YEAR
Lighting solutions service: Lighting and circuitry design, auto CAD layout, Project Installation, LED Strip
Chip Material: InGaN
Emitting Color: RGBW
Luminous Intensity: R: 2000~2500mcd G: 4000~5000mcd B: 1300~1800mcd
Luminous Flux(lm): white: 6-7lm
Optical Attenuation(%): 2
Power: 0.3w
Power Dissipation: 2
Viewing Angle(°): 120
Color Rendering Index(Ra): 80
Color Temperature: 6000 — 6500k
Operating Temperature(℃): -40 – 85
Storage Temperature(℃): -40 – 100
Place of Origin: Guangdong, China
Brand Name: TCWIN
Certification: CE, RoHS
Package Size: 5.0*5.0*1.2mm
Chip Brand: epistar Chip ( 4 chip)
Lifespan: 50000H-100000H
Voltage: 2.8~3.2V
Current: 20ma
Application: stage light , flood light, spot light , underwater light ,led strip
